MS Series Constant Voltage Miniature Switching Power Supply

  • 35W Miniature Switching Power Supply (Model: MS-35-5/12/15/24/48)

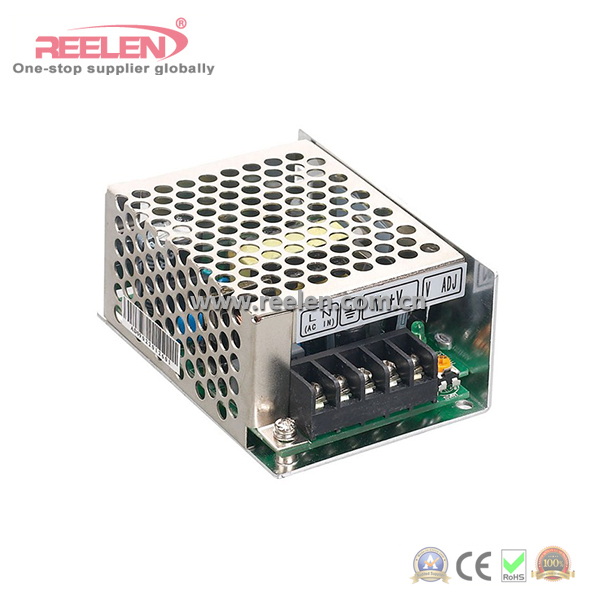

35W Miniature Switching Power Supply (Model: MS-35-5/12/15/24/48)

35W Miniature Switching Power Supply (Model: MS-35-5/12/15/24/48)

  • Input: 100~240VAC or Customized
  • Modulation System: PWM
  • Safety Standard: En60950
  • 100% full load burn-in test
  • Description:
  • INQUIRY   EMAIL
MS Series Constant Voltage Miniature Switching Power Supply






Features

1. Universal AC input/Full range
2. High efficiency, long life and high reliability
3. LED indicator for power on
4. Cooling by free air convection
5. 100% full load burn-in test
6. Protection: Over load/Over voltage/Short circuit/Over temperature
7. CE,ROHS approval
8. 2 years warranty


Technical Parameters


MODEL
MS-35-5 MS-35-12 MS-35-15 MS-35-24 MS-35-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 7A 3A 2.3A 1.46A 0.73A
CURRENT RANGE 0 ~ 7A 0 ~ 3A 0 ~ 2.3A 0 ~ 1.46A 0 ~ 0.73A
RATED POWER 35W 36W 35W 35W 35W
RIPPLE & NOISE (max.) 70mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5~16.5V 21.6 ~ 26.4V 43.2~52.8V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 200ms,100ms,30ms
HOLD TIME (Typ.) 200ms,100ms,30ms
INPUT VOLTAGE RANGE 100~240VAC     240~370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77% 79% 80% 80% 81%
AC CURRENT (Typ.) 0.8A/115VAC   0.45A/230VAC
INRUSH CURRENT (Typ.) COLD START 18A/115V   36A/230V
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVERLOAD 105%~150% rated output power
Protection type : pulsing hiccup shutdown  Resete:auto recovery
OVER VOLTAGE 5.75~6.75V 13.8~16.2V 17.25~20.25V 27.6~32.4V 55.2~64.8V
Protection type :Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -10 ~ +60°C
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min, each along X,Y,Z axes
SAFETY & EMC SAFETY STANDARDS Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMC EMISSION & IMMUNITY EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS DIMENSION 85×58×37mm (L×W×H)
WEIGHT 0.19Kg; 100pcs/19.7Kg/1.29CUFT


Note:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47 uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
