MS Series Constant Voltage Miniature Switching Power Supply

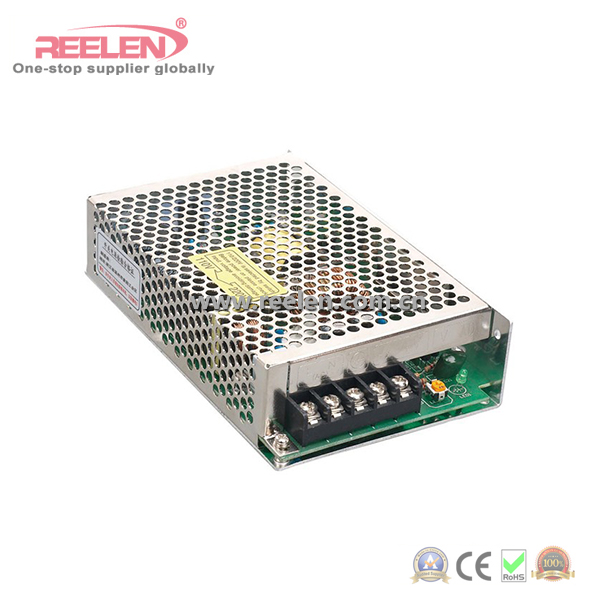

  • 100W Miniature Switching Power Supply (Model: MS-100-5/12/15/24/48)
100W Miniature Switching Power Supply (Model: MS-100-5/12/15/24/48)

100W Miniature Switching Power Supply (Model: MS-100-5/12/15/24/48)

  • Input: 85~132VAC / 170~264VAC Selected by Switch
  • Modulation System: PWM
  • Safety Standard: En60950
  • 100% full load burn-in test
  • Description:
  • INQUIRY   EMAIL
MS Series Constant Voltage Miniature Switching Power Supply






Features

1. Universal AC input/Full range
2. High efficiency, long life and high reliability
3. LED indicator for power on
4. Cooling by free air convection
5. 100% full load burn-in test
6. Protection: Over load/Over voltage/Short circuit/Over temperature
7. CE,ROHS approval
8. 2 years warranty




Technical Parameters

MODEL MS-100-5 MS-100-12 MS-100-15 MS-100-24 MS-100-48
OUTPUT DC VOLTAGE  5V 12V 15V 24V 48V
RATED CURRENT 20A 8.3A 6.7A 4.2A 2A
CURRENT RANGE 0 ~ 20A 0 ~ 8.3A 0 ~ 6.7A 0 ~ 4.2A 2A
RATED POWER 100W 100W 100W 100W 100W
RIPPLE & NOISE (max.) 70mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5~16.5V 21.6 ~ 26.4V 43.2~52.8V
VOLTAGE TOLERANCE  ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 200ms,100ms,30ms
HOLD TIME (Typ.) 200ms,100ms,30ms
INPUT VOLTAGE RANGE 85~132VAC / 170~264VAC selected by switch;  240~370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77% 81% 81% 82% 82%
AC CURRENT (Typ.) 1.3A/115VAC   0.65A/230VAC
INRUSH CURRENT (Typ.) COLD START 18A/115V   36A/230V
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVERLOAD 105%~150% rated output power
Protection type : pulsing hiccup shutdown  Resete:auto recovery
OVER VOLTAGE 5.75~6.75V 13.8~16.2V 17.25~20.25V 27.6~32.4V 55.2~64.8V
Protection type :Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -10 ~ +60°C
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min, each along X,Y,Z axes
SAFETY & EMC  SAFETY STANDARDS Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMC EMISSION & IMMUNITY EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS DIMENSION 160×98×38mm (L×W×H)
WEIGHT 0.50Kg; 40pcs/20.7Kg/1.29CUFT


Note:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47 uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
