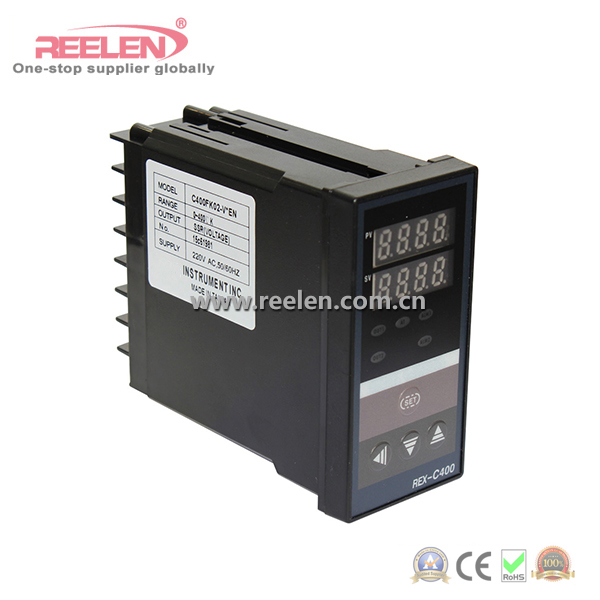

REX Series PID Intelligent Temperature Controller






Specification

1).Model: REX-C400
2).Input:Universal
3).Output:Relay,SSR,4-20mA,0-10V
4).Alarm: 1 or 2
5).Control: PID or ON/OFF




Product Feature

· Uses it for Kiln,Furnace,Oven,Incubator temperature control
· Uses it in heating control as well as for cooling control
· It is used in various industries to control and monitor process temperatures
· Auto tuning function
· 2-Rows 2-Colors 4-Digits display
· Display temperature in Celsius (°C)
· Universal input, support 10 different types of  thermocouples and RTD inputs by customers selected at panels.




Product Description
Input type TC: K, E, S, R, J, T, B, WRe3-WRe25.
RTD: Pt100, Cu50
DC voltage: 0~5V, 1~5V,0~10V.
DC current:  4~20mA
Input range K (-200~+1300ºC), S (-50~+1600ºC),
WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC),
T (-200~400ºC), E (-2), J (-200~1200ºC),
B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC),
Cu50 (-50~150ºC)
Display Two lines, Four digits. °C.
Display Resolution 1°C or 0.1°C with Pt100
Accuracy ±0.5% or ±1 unit of full input range
Control mode PID, On-Off
Output mode Relay contact: 3A at 240 VAC.
SSR: 12VDC,
Current: 4~20 mA
Voltage: 0~10V
Alarm Process high/low alarm
Power consumption <2 Watt
Power supply voltage rating 85~260VAC/50~60Hz or 24VDC
Dimensions Rex-C100  48*48mm;                    Rex-C700  72*72mm;
Rex-C900  96*96mm;                    Rex-C800  160*80mm;
Rex-C400  48*96mm(Vertical)     Rex-C410  96*48mm(Horizontal)
Note:
· Only clean the instrument when power off.
· Please use a soft cloth or cotton paper to clean up the stain on the display.
· Do not clean up or touch the display by hard matters in case of  any scrath.
· Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.
