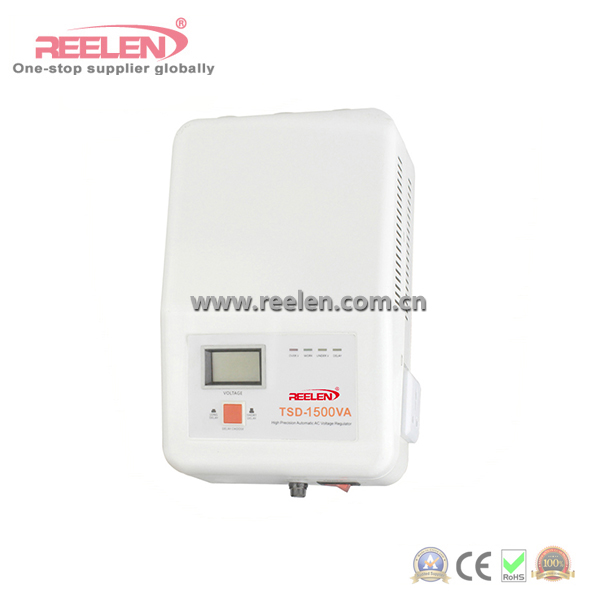

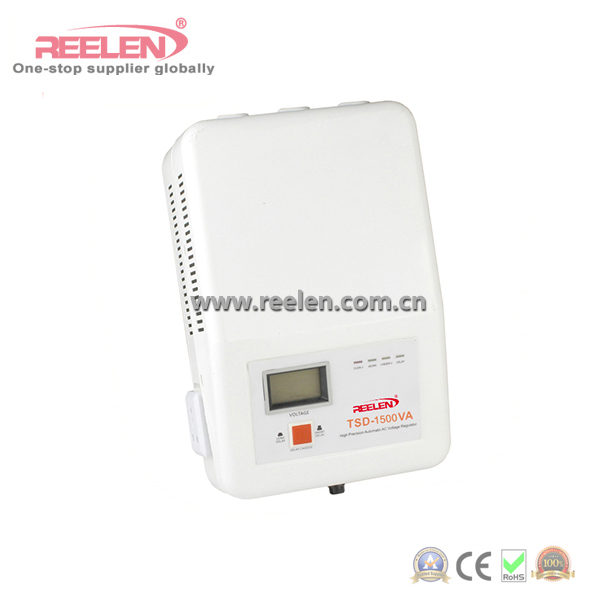

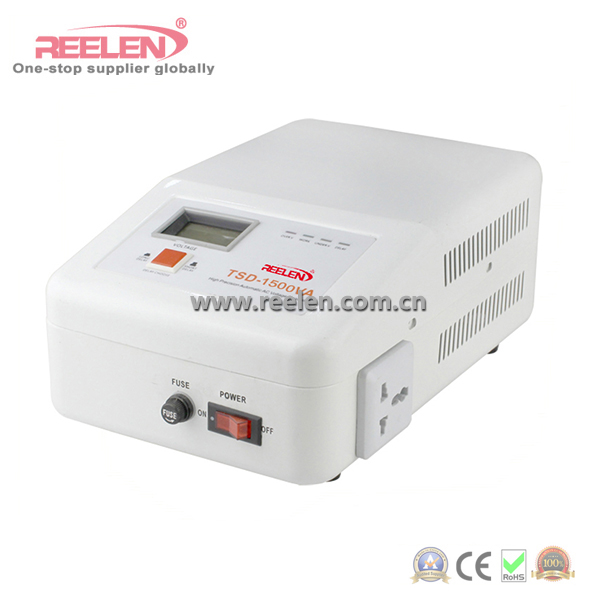

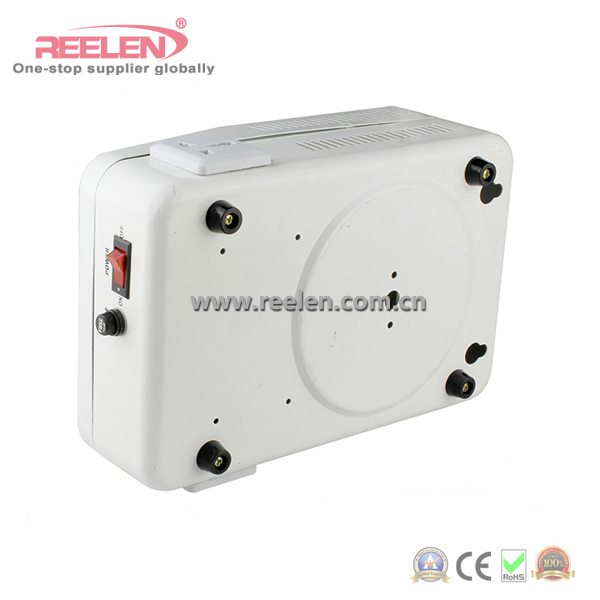

TSD Series Wall Mounted Servo Motor Ac Voltage Regulator

  • 1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)
  • 1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)
  • 1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)
  • 1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)
  • 1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)
1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)

1500VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-1500VA)

  • Input Voltage: 150-250VAC or Customized
  • Output Voltage: 220V+/-3% or Customized
  • Adjusting Time: <1s ( when input voltage has a change of 10%)
  • Insulation Resistance: ≥2MΩ
  • Description: TSD series AC servo regulator to improve the product design based on SVC series of products, with the delay, over-voltage and under-voltage protection, electric regulator freedom change excellent func
  • INQUIRY   EMAIL
TSD Series Single Phase Wall Mounted Servo Motor Full Auto Ac Voltage Regulator







Specification

1.Reasonable Price,Best Quality;
2.Reliable Performance;
3.Long-term With Simple Operation;
4.Servo motor drice;
5.Full Automatic Timely;




Product Introduction

TSD series AC servo regulator to improve the product design based on SVC series of products, with the delay, over-voltage and under-voltage protection, electric regulator freedom change excellent function, the wall installation, can effectively expand the use of space and streamline shape, soft colors, giving the visual sense to take on an altogether new aspect.
Products can be widely used in office equipment, testing equipment, medical equipment, industrial automation equipment, household appliances, lighting system, communication system and any other electric field.




Technical Parameter



Input Voltage: Ordinary 160-250V, or optional larger range;
Output Accuracy: 220V±3%, 110V±6%;
Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
Frequency: 50Hz/60Hz;
Adjusting Time: <1s ( when input voltage has a change of 10%);
Adjusting Speed: >15V/s;
Waveform Distortion: No additional waveform distortion;
Efficiency: >95%;
Relative Humidity: ≤95%;
Ambient Temperature: -5 ~ +40°C;
Dielectric Strength: 1500V/min;
Insulation Resistance: ≥2MΩ;
Packaging Detail: Standard Export Carton or Wooden Case And Colour Box Package




Specifications, size, weight




Applications

TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC;
