TSD Series Wall Mounted Servo Motor Ac Voltage Regulator

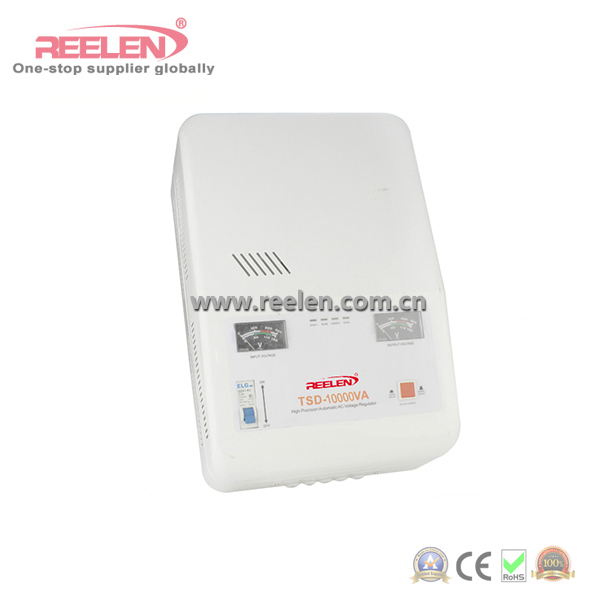

10000VA Wall Mounted Servo Motor Full Auto AC Voltage Stabilizer (Model: TSD-10000VA)
Input Voltage: 150-250VAC or Customized
Output Voltage: 220V+/-3% or Customized
Adjusting Time: <1s ( when input voltage has a change of 10%)
Insulation Resistance: ≥2MΩ
Description: TSD series AC servo regulator to improve the product design based on SVC series of products, with the delay, over-voltage and under-voltage protection, electric regulator freedom change excellent func
TSD Series Single Phase Wall Mounted Servo Motor Full Auto Ac Voltage Regulator
Specification
1.Reasonable Price,Best Quality; 2.Reliable Performance; 3.Long-term With Simple Operation; 4.Servo motor drice; 5.Full Automatic Timely;
Product Introduction
TSD series AC servo regulator to improve the product design based on SVC series of products, with the delay, over-voltage and under-voltage protection, electric regulator freedom change excellent function, the wall installation, can effectively expand the use of space and streamline shape, soft colors, giving the visual sense to takeon an altogether new aspect. Products can be widely used in office equipment, testingequipment, medical equipment, industrial automation equipment, household appliances, lighting system, communication system and any other electric field.
Technical Parameter
Input Voltage: Ordinary 160-250V, or optional larger range; Output Accuracy: 220V±3%, 110V±6%; Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order; Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order; Frequency: 50Hz/60Hz; Adjusting Time: <1s ( when input voltage has a change of 10%); Adjusting Speed: >15V/s; Waveform Distortion: No additional waveform distortion; Efficiency: >95%; Relative Humidity: ≤95%; Ambient Temperature: -5 ~ +40°C; Dielectric Strength: 1500V/min; Insulation Resistance: ≥2MΩ; Packaging Detail: Standard Export Carton or Wooden Case And Colour Box Package
