JBK5 Series Machine Tool Control Transformer

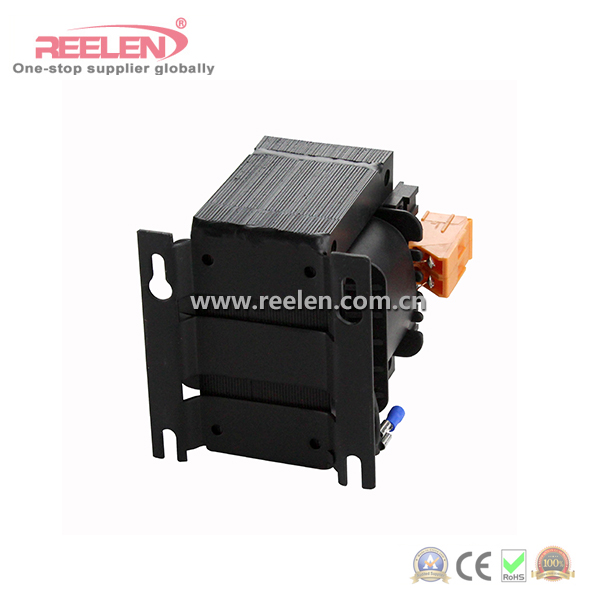

160VA Single Phase Power Transformer (Model: JBK5-160VA)

160VA Single Phase Power Transformer (Model: JBK5-160VA)

Usage: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Primary Voltage: 220V or 380V or Customized
Secondary Voltage: 12V, 24V, 110V or Customized
Safety Standard: En61558
Description:
INQUIRY EMAIL

JBK5 Series Machine Tool Control Transformer

Application

JBK5 series transformers are used in the 50-60HZ ac circuit of input voltage less than 660V and output voltage less than 230V as machine equipment in various area for controlling the power of electrical equipment , lighting and Signal lamp. This series transformer is adopted in Germany technic and made improvement on the base of JBK3 model. It improve in advanced terminal block which can be connected to the coilframework together and increasethe wire compression so as to heighten protection grade to IP2LX to avoid touching circuit. It use IT end sleeves to increase fastness and reliability ofthe wire connection. This series transformer is adopted in weld of gas protection argon arc so as to be whole. The soleplate is moulding in one time to be more accurate and extract in the installation dimension. This series transformer is much improved in quality and shape. It conforms to GB5226,JB/T5555-201,VDE0550-1-3,IEC204-1,IEC-43 etc.
